A homeowner in Sacramento calls her electrician because the breaker keeps tripping after she installed a Level 2 EV charger. He opens the panel, does the load calc, and delivers the news: she needs a 400-amp service upgrade. New panel, new meter base, new conduit from the utility transformer, new wiring to the house. He quotes $18,000. She says something unprintable. He nods. Eleven times. He has given this exact speech eleven times in the past three months, and the number keeps climbing because every home electrification project collides with the same hard physical constraint that was wired into the American residential grid decades before anyone imagined charging a car in the garage.
That scene is playing out across the country right now, in every state with electrification mandates and in plenty of states without them, because the math is brutal and simple. A 200-amp panel at 240 volts delivers 48,000 watts of theoretical capacity. Central air conditioning pulls 20 to 30 amps, an electric dryer takes 24 to 30, a heat pump water heater draws 15 to 25, and an induction range demands 40 to 50. A Level 2 EV charger, the kind that actually refills a 70-kWh battery overnight instead of trickling in 4 miles of range per hour on a standard outlet, needs 32 to 48 amps. Add those up. You blow past 200 amps before you even account for lighting, the dishwasher, the washing machine, or the fourteen devices your kids have plugged in at any given moment.
What Smart Panels Actually Do

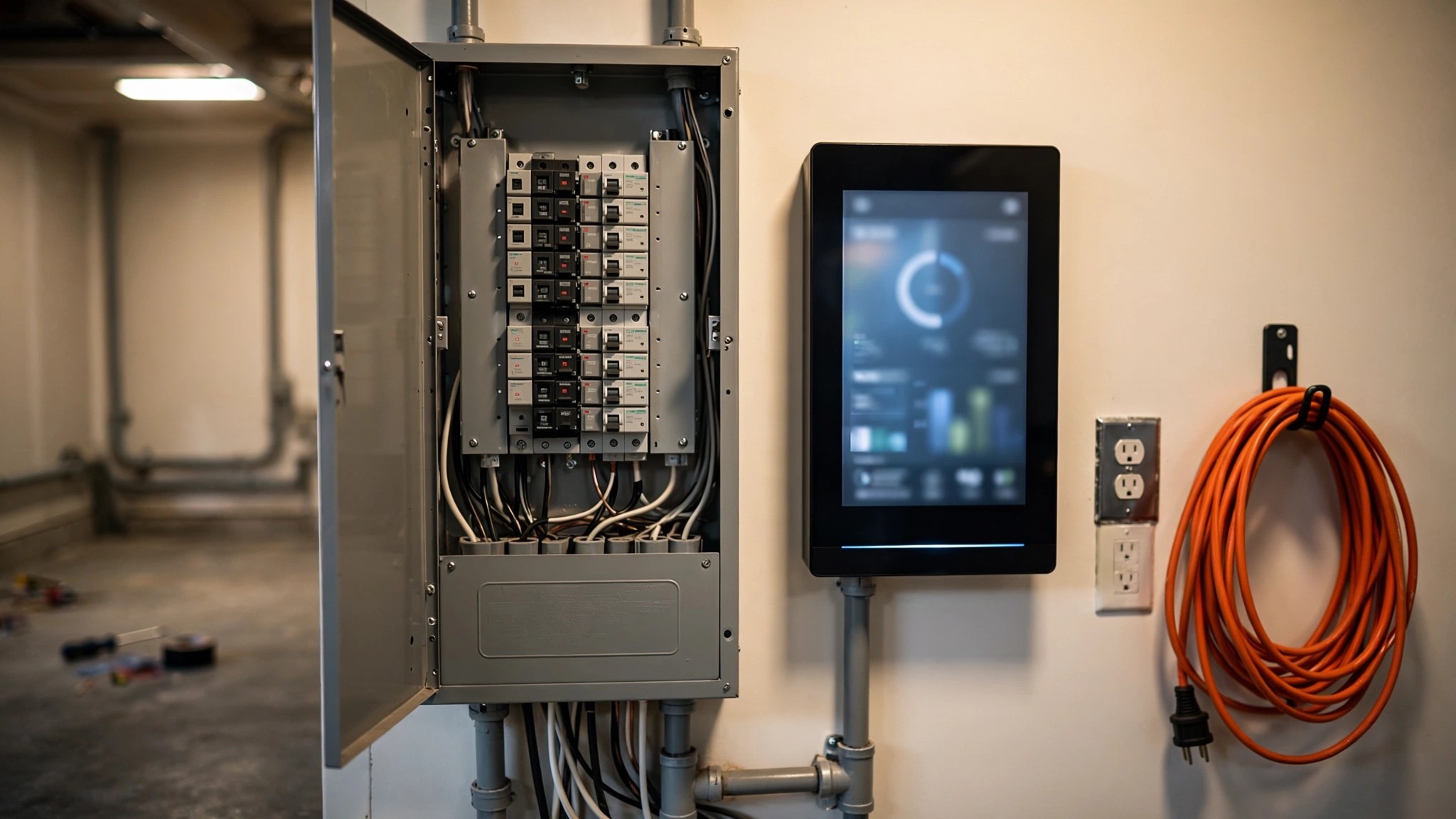

Enter the smart electrical panel. Span, the company founded by ex-Tesla Powerwall engineers, sells a $3,500 unit that replaces your existing breaker box and monitors every circuit in real time. When total household draw approaches the service limit, the panel's software automatically throttles or pauses lower-priority loads. Your EV charger drops from 48 amps to 24, your water heater pauses for twenty minutes, and your dryer cycle delays by half an hour. You never notice because these loads are interruptible by nature, and the algorithm schedules them around the demand spikes that would otherwise trip your main breaker, quietly rearranging the electrical choreography of your household so that everything gets done but nothing demands full power at the exact same moment as everything else.
ABB's ReliaHome takes a different approach: instead of replacing the entire panel, it mounts beside your existing box and controls a subset of high-draw circuits through a companion app. ELECQ narrows the scope further, pairing a power monitor with its own Level 2 EV charger so the two communicate directly and the charger backs off when the house load climbs. And Schneider Electric, the multinational that has been manufacturing electrical distribution equipment since 1836, is pushing its own home energy management system with a pitch aimed squarely at builders: stop speccing 400-amp service, because intelligent load control can keep everything within 200 amps and save $15,000 per house.
Span's system, called PowerUp, earned certification as an Energy Management System under the National Electrical Code, which matters because it means inspectors in jurisdictions that have adopted NEC 2023 or later can legally accept AI-managed load balancing as a substitute for raw panel capacity. Eaton, one of the largest electrical equipment manufacturers on earth, invested $75 million in Span in March 2026, a bet that signals institutional confidence far beyond what a venture round from software investors would imply. Eaton does not write $75 million checks on interesting ideas. Not a chance. Eaton writes $75 million checks on products it expects to distribute through its own global supply chain.
Running the Break-Even Math
Nobody publishes this calculation cleanly, so I ran it myself, pulling hardware pricing from Span's published numbers, installation cost ranges from Solar Reviews and EnergySage installer surveys, and utility-side upgrade estimates from electrical contractors across six metro areas.
| Scenario | Hardware | Installation | All-In Cost |
|---|---|---|---|
| Traditional 200A panel swap | $300–$400 | $1,000–$3,000 | $1,300–$3,400 |
| Span smart panel (200A) | $3,500–$4,500 | $2,000–$5,000 | $5,500–$9,500 |
| 400A service upgrade | $2,000–$4,000 | $8,000–$26,000 | $10,000–$30,000 |
A smart panel installed in an existing home runs $5,500 to $9,500 all-in, per Solar Reviews installer surveys and Span's published pricing. A full 400-amp service upgrade runs $10,000 to $30,000, with the wide range driven by whether the utility transformer serving your street can handle the increased load or needs replacement at the utility's expense (which in practice often becomes your expense through a special assessment or connection fee, depending on the utility). The delta ranges from $500 at the optimistic end to $20,500 at the expensive end. For most retrofits in metropolitan areas where utility-side upgrades are required, the realistic savings cluster around $7,000 to $15,000.
JD Gill, Schneider Electric's Senior Offer Manager for Connected Homes, frames it differently. "It's not only the panel," he told Builder Magazine in April 2026. "It's the infrastructure leading up to the home: the utility transformer, the conduit, wire coming into the home. All that has to be upsized to that larger amperage, which is very costly." He is correct, and his framing exposes why the cost range is so wide: the panel itself is the cheap part, and everything upstream of it is where the real money hides.
Where Physics Wins
Load management works because most homes never actually use their full rated capacity at the same time. Industry data consistently shows residential panels running at 40 to 60 percent utilization on average, with brief spikes during morning and evening peaks when multiple high-draw appliances overlap. A smart panel exploits that diversity factor, shifting deferrable loads into the valleys between peaks so the instantaneous draw stays under the service limit.
But there is a ceiling, and the industry has not been honest about where it sits, which matters because the gap between marketing claims and thermodynamic reality is exactly the gap where homeowners spend money they did not need to spend or, worse, discover their smart panel cannot actually keep the lights on during a heat wave while charging their car.
Consider a fully electrified 2,400-square-foot home in Phoenix on an August afternoon. The 5-ton heat pump is pulling 45 amps and cannot be throttled without the indoor temperature climbing past the thermostat setpoint within minutes because exterior temperatures exceed 110 degrees. The induction range is drawing 40 amps because dinner is being cooked right now, not on a schedule the algorithm prefers. The EV charger needs 40 amps because the car has to be at 80 percent by 6 AM and the owner got home at 7 PM with 15 percent remaining. That is 125 amps of genuinely non-deferrable demand before you add the refrigerator, the pool pump, lighting, and everything else in the house that quietly contributes to the base load.
Smart load management cannot compress time. Physics does not negotiate. If you need 40 amps for four hours to charge your car and 45 amps for six hours to cool your house, and those hours overlap by three, no algorithm changes the fact that 85 amps of that overlap is non-negotiable. Throttle the EV charger to 24 amps and the charge session extends to nearly seven hours, which means it now overlaps with the morning HVAC ramp and the hot water heater recovery cycle and possibly the dryer because someone needs clean clothes for work. You have not eliminated the peak. You have smeared it across a longer window and prayed that no two high-draw appliances coincide within it.
I calculated the approximate total connected load for a fully electrified 2,400-square-foot home with an EV, heat pump HVAC, heat pump water heater, induction range, electric dryer, and standard appliances. It comes to roughly 220 to 280 amps of connected load on a 200-amp service. At the low end, load management can probably keep you under the limit with minor inconvenience. At 280 amps of connected load, you are asking software to juggle a 40 percent oversubscription ratio during peak hours in extreme weather, and the quality-of-life degradation becomes noticeable: slower EV charging, delayed laundry cycles, HVAC setpoint compromises on the hottest and coldest days of the year.
New Construction vs. Retrofit: Different Calculus Entirely
Everything above applies to existing homes, where ripping out the service entrance and running new conductors from the street is the expensive, disruptive project that smart panels promise to avoid. In new construction, the math flips completely.
Pre-wiring a new home for 400-amp service during construction adds $2,000 to $5,000 to the build cost, according to electrical contractor estimates compiled by Builder Magazine. The conduit is already being trenched, the meter base is already being set, and the utility transformer is being sized for the development as a whole. Upgrading from 200-amp to 400-amp wire and panel at this stage is a marginal cost increase, not a five-figure retrofit. At that price, a $3,500 smart panel that avoids the upgrade saves almost nothing over just running the bigger wire in the first place, and you get the permanent headroom of 400-amp service without depending on software that could be discontinued, updated in ways that change your load priority settings, or sold to a company with different priorities than the one you bought from.
Builders should be asking a pointed question: am I installing a $3,500 smart panel to avoid a $3,000 wiring upgrade during construction? Because if the answer is yes, the economics only make sense if Span's software delivers ongoing value beyond load management, like energy monitoring, battery integration, or utility demand response programs that generate revenue. Span does offer these features, and whether they justify the premium over brute-force 400-amp wiring depends on your buyer profile, the local utility landscape, and whether demand response programs in your market actually pay enough to move the needle on a per-home basis.
What Span's Utility Play Means for You
Span Edge is the product nobody in the residential construction press is covering closely enough. Sold directly to utilities, Edge turns Span panels into a managed fleet. The utility can set virtual consumption limits for groups of homes during peak demand events, throttling entire neighborhoods at once to avoid brownouts or transformer overloads. Span claims a neighborhood equipped with Edge "can double the utilization of utility infrastructure," which, if true, means utilities can connect twice as many all-electric homes to existing transformers without upgrading the distribution grid.
For homeowners, this dual-purpose capability is a double-edged feature that deserves more scrutiny than the marketing materials provide. Demand response programs that pay you $50 to $150 per year for allowing your utility to curtail your EV charging during grid emergencies are one thing. A system where your utility can remotely throttle your home's electrical consumption based on aggregate neighborhood load, with the specific curtailment decisions made by Span's algorithm rather than your own thermostat setting, is something else. Read the terms of service carefully, because the fine print on demand response enrollment can determine whether the utility's ability to throttle your home is limited to genuine grid emergencies or extends to routine peak-shaving events that happen dozens of times per summer. Understand what control you are ceding and to whom.
Strongest Counterargument
Smart panels are a venture-backed software bet bolted to your electrical system. Span has raised over $200 million, it has Eaton's backing, and it has NEC certification. None of that guarantees the company exists in ten years, and electrical panels are 30-year infrastructure decisions. If Span's cloud services shut down or the company is acquired by a competitor who deprecates the product line, you own a $3,500 breaker box with a dark touchscreen and no load management capability. Traditional panels require zero software, zero internet connectivity, and zero ongoing vendor relationship. They work until the bus bar corrodes, which takes decades. A smart panel's hardware may last just as long, but its intelligence has a shelf life determined by a San Francisco startup's burn rate, competitive position, and strategic direction. Eaton's investment mitigates this risk substantially, but mitigation is not elimination, and homeowners who lived through the Revolv smart home hub shutdown, where Alphabet bricked every device after acquiring the company, have reason to ask hard questions about what happens to their electrical system when the software company pivots.
If You Are Deciding Right Now
Existing home, 200-amp service, adding an EV charger and one more major electric appliance: A smart panel is probably the right call. Your total connected load stays in the range where AI load management works without visible quality-of-life compromises, and the cost savings over a 400-amp upgrade are real and significant. Budget $6,000 to $9,000 installed.
Existing home, 100-amp service, full electrification planned: You likely need a service upgrade regardless. A smart panel on 200-amp upgraded service might handle it. On 100-amp service, the oversubscription ratio is too high for software to manage without frequent, noticeable curtailment. Get the upgrade, then decide whether a smart panel's monitoring and battery integration features justify the premium over a standard 200-amp box.
New construction, builder spec'ing the electrical: Wire for 400 amps. The incremental cost during construction is a fraction of the retrofit price, and you get permanent capacity headroom that does not depend on any software vendor's continued existence. Add a smart panel for its monitoring and demand response features if the numbers pencil, but not as a substitute for adequate wiring.
Retrofit where 400-amp is genuinely impractical (underground service, historic districts, utility transformer at capacity with no planned upgrade): A smart panel is not just a cost-saving alternative. It may be the only viable path to electrification without a multi-year utility infrastructure project. In this scenario, the technology solves a problem that money alone cannot.
Limitations
The break-even calculation above uses published pricing from Span, Solar Reviews, and EnergySage, all of which represent national averages. Installation costs vary by 50 percent or more depending on your local labor market, the condition of existing wiring, permit requirements, and whether your utility charges separately for transformer upgrades. The quality-of-life assessment of load management at various oversubscription ratios is an analytical projection based on appliance draw ratings and typical duty cycles, not a controlled field study. No independent third party has published monitored data showing exactly how Span, ABB, or ELECQ perform during sustained peak demand in a fully electrified home during extreme weather. Span's NEC certification as an Energy Management System applies in jurisdictions that have adopted NEC 2023 or later; older code cycles may not recognize AI load management as a substitute for physical panel capacity, and your inspector has final authority regardless of what the manufacturer's spec sheet claims. The connected load calculations assume manufacturer-rated amperage draws; actual consumption varies with equipment age, installation quality, and ambient conditions.
